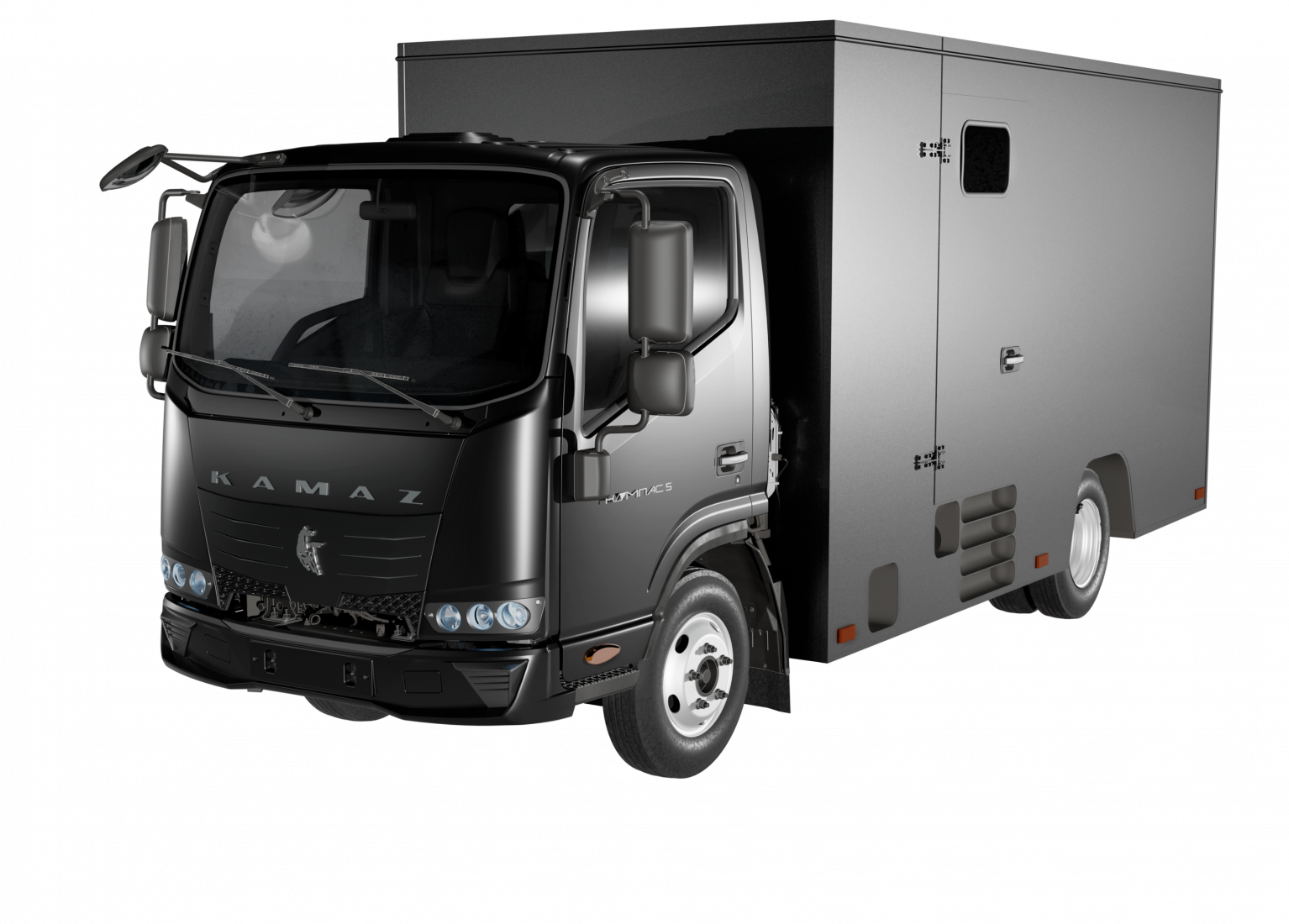

Armoured
vehicle based on
«Кompas 5»

BLAZAR LLC offers armored vehicles with the following protection grades: Br 2, Br 3 and Br 4 as per GOST 30826 for the transportation of valuable cargoes and monetary means. These vehicles are designed for banks and CIT companies. Vehicle protection level is customizable.

Length:

6 000 mm

Width:

1 846 mm

Height:

2 650 mm

Wheelbase:

3 365 mm

Ground clearance:

220 mm

Superstructure width

2000 mm

We can offer hidden armoring of vans performing security functions or a VIP option of a van for transportation of VIPs or clients who want to carry a large amount of money or valuables with increased comfort and under the supervision of armed guards.

We use chassis "KOMPAS" as a base version for creation of CIT vehicles.

Armored protection supplied:

Inside the van-type body, we create an armored capsule that provides vertical perimeter protection of the interior, roof and floor.

All vehicle glasses are armored, including front glasses, side glasses of the cab and CIT compartment.

The vehicle retains all its factory systems that provide passive safety and driver assistance (ABS, ESC, BAS etc.).

All-round protection of the fuel tank.

Main specifications of KOMPAS 5 (43085)

Wheel configuration	4х2
Gross vehicle weight, kg.	3490
Wheel base	3365
Clearance	220
Engine
Model	KAMAZ 580.10-120
Type	Turbocharged four-stroke diesel engine (Common Rail)
Emission standard	5
Displacement, (L/cm³)	2.2 / 2183
Max. power	90 kW (122 hp) / 3200 rpm
Max. torque	320 Nm / 1600 – 2000 rpm
Gearbox	Manual, 5-speed
Braking system
Type	Hydraulic, with an ABS, ESC (Electronic Stability Control)
Front / rear mechanisms	Disc / Drum
Fuel tank, volume, (L)	75
Suspension	Dependent, on longitudinal semi-elliptic springs, with hydraulic shock absorbers.
Tyres	205/75R16С
Cab
Type	All-steel, 2-seat
Width, mm	1725
Maximum overall dimensions of the van, mm:	4800х2300х2200

Basic vehicle configuration:

Halogen lamps,
Warning reverse signal (in sync with a reverse gear),
ABS,
ESС,
Central lock,
Conditioner,
Audio system (MP3 + radio), 2 speakers, antenna, seat-belt indicator.

SPTA-O:

fire extinguisher,
auto first-aid kit,
additional engine air filter,
additional brake-shoe set on all wheels,
set of safety fuses,
towing rope,
spare wheel ("space-saving spare wheel").

Warranty on new vehicles: 1 year or 20000 km, what will happy earlier (different options are available).

Documents provided:

vehicle type approval;
certificate for armored glass.
certificate for armored steel;
logbook of an armored vehicle.

The following components can be installed on the vehicle as additional equipment:

wheels assembled with the use of the RunFlat technology allowing to keep on moving without any pressure in tires:
external and internal video control system;
intrusion detection alarm system;
fire extinguishing system;
centralized door closing (opening) system;
special climate control installation;
loopholes in doors for firing;
weapon attachments;
intercommunication system "interior - outdoors";
unlocking of the electromechanical lock of rear armored wing doors is performed with the help of the driver's bottom;
blocking/unlocking of the side door of the CIT compartment;
blocking/unlocking of the driver's and front passenger's door;
additional mechanical lock that is opened from the outside with the key;
disconnect switch available from the driver's seat;
guard's rear view mirror;
device for ricking ATM stackers.

The roof of the armored vehicle can be equipped with an armored air hatch or evacuation hatch serving as an emergency exit.

The installation of other additional options is customizable.
