Blazar LLC offers armored vehicles with protection class: Br 2, Br 3, Br 4 according to GOST 34282-2017, GOST 30826-2014 for the transportation of valuable goods and cash. The vehicles are designed for banks and companies providing cash-in-transit services. The vehicle protection level is determined upon the agreement with the customer.
There are options for hidden armor for vans performing security functions, or a VIP version of a van for the transportion of particularly important persons or customers who want to transport a large amount of money or valuables with increased comfort and under the supervision of armed guards.

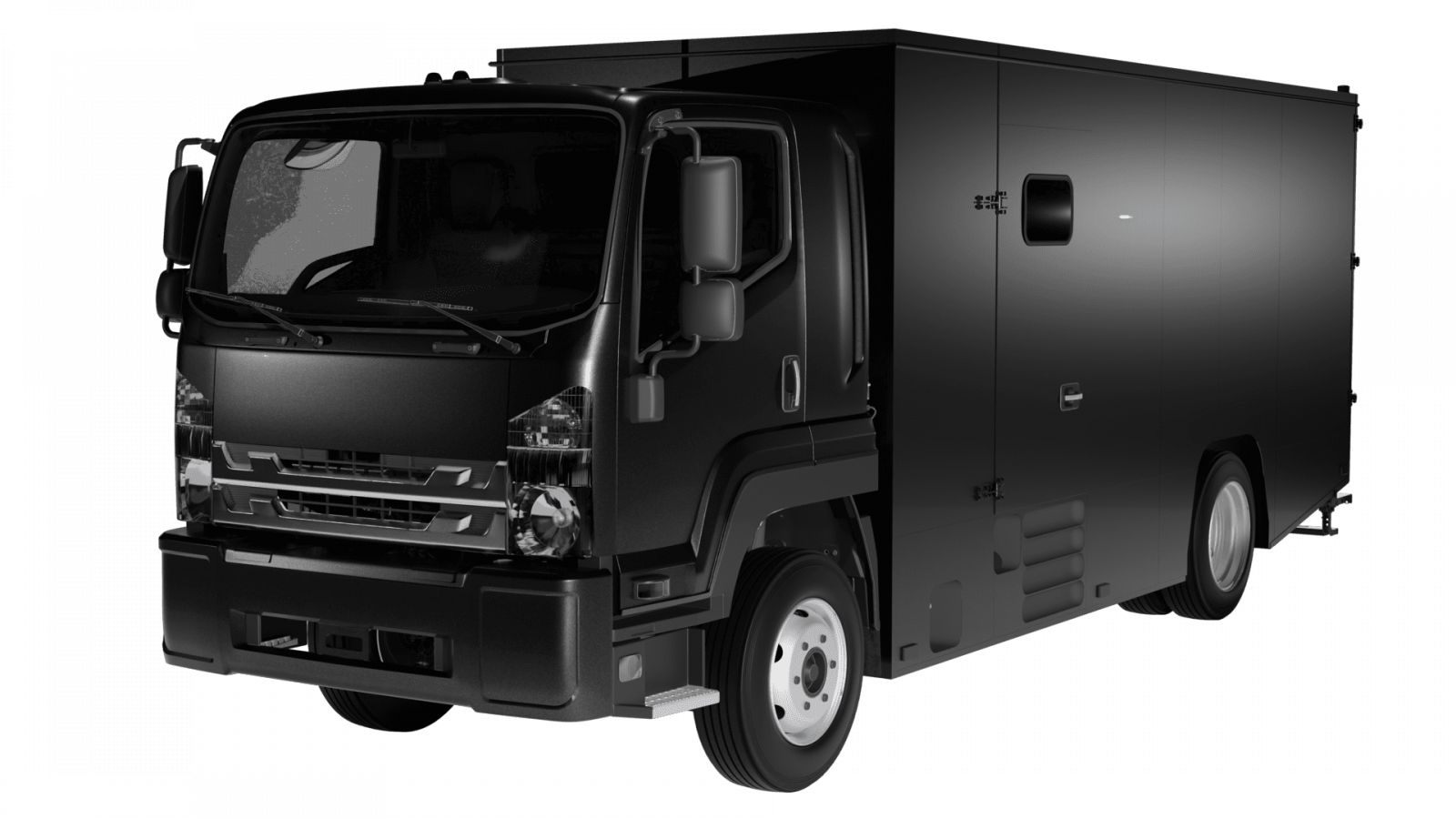

The ISUZU FWR chassis is used as the basic version when creating cash-in-transit vehicles.
The complete set of armor protection:
An armored capsule is created inside the van body, protecting the interior along the perimeter in vertical planes, the roof and the floor.
All vehicle glasses (including the front, side glasses of the cab and the cash-in-transit compartment) are armored.
All factory systems of the vehicle in terms of passive safety and driver assistance (ABS, ESC, BAS, etc.) are preserved.
Circular protection of the fuel tank.
The main technical features of "ISUZU FWR" (ISUZU FSR34 FORWARD 18.0)
Wheel configuration
|
4x2
|
Total weight, kg.
|
18000
|
Wheelbase, mm
|
4650/5550/6050
|
Ground clearance, mm.
|
224
|
Engine
|
|
Model
|
ISUZU 6HK1 (6HK1E5CC) 6 cylinders, in-line arrangement.
|
Type
|
Four-stroke, liquid-cooled, diesel (Common Rail system), turbocharged with variable geometry (VGS) and a charged air cooler, with an EGR system and additional neutralizer DOC (Diesel Oxidation Catalyst) in the exhaust system.
|
Environmental class
|
5
|
Displacement, (L/cm³)
|
7790
|
Engine power, kW/hp at rpm
|
191/260 at 2400±50
|
Max. torque
|
761 at 1450±40
|
Gearbox
|
ZF 9S1110,
9-speed, manual (a range-change gearbox)
|
The braking system
|
|
Type
|
Pneumatic with an ESC (includes an ABS and an ASR)
|
Front/rear mechanisms
|
Drum-type/Drum-type
|
Fuel tank, volume, (L)
|
400
|
Front/rear suspension
|
Two versions:
First: spring/spring
Second: spring/pneumatic with an ELC
|
Tires
|
295/80R22.5
|
Cab
|
|
Type
|
All-metal, 3-seat, with 1 bed.
|
Single set of SPTA:
- a fire extinguisher,
- an auto first-aid kit,
- an additional engine air filter,
- an additional set of brake pads for all wheels,
- a set of safety fuses,
- a tow rope,
- a jack,
- a spare wheel (a "space-saving tire").
The warranty for new vehicles: 1 year.
The documents provided:
- a vehicle design safety certificate;
- a certificate for armored glass;
- a certificate for armored steel;
- a vehicle passport (e-VP) for an armored vehicle.
